610x610 Polyurethane Mining Vibrating Screen Mesh
  • name
  • name

610x610 Polyurethane Mining Vibrating Screen Mesh

MOQ: 10 pieces
Price: USD 35-45 per piece
Standard Packaging: air bubble film + wooden box
Delivery Period: 7 - 10 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 10000 pieces per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HUATAO
Model Number
HT-013
Material:
Polyurethane
Size:
610mm*610mm /305mm*305mm
Type:
LINEAR
Feature:
High Screening Efficiency
Usage:
Separation Screening
Function:
Screening\separation\sorting\sieving
Voltage:
220V / 380V / 415V / 450V
Warranty:
More Than 5 Years, 12 Months
Open Area Rate:
28-40%
Color:
Red,yellow,green
Highlight:

mining vibrating screen mesh

,

polyurethane vibrating screen mesh

,

610x610 Vibrating Screen Mesh

Product Description

High quality polyurethane mining screens





Polyurethane screen mesh is designed to be the most original structure, it adopts utility model fastening connection system, makes the supporting beam and polyurethane panel as a whole through the rail support as the picture we showed above. The biggest advantage of this structure is very easy for installation and replacement under the condition of connection strength ensured, so as, both the separating and screening efficiency can be improved and the working intensity are also be reduced.



Specification

Mesh Size Standard Type Effective Type Long Service Type

Diagrid

mm

Aperture Ratio

%

Diagrid

mm

Aperture Ratio

%

Diagrid

mm

Aperture Ratio

%
8 4 14 3 53 6 33
10 4 51 3 59 6 39
12 6 44 4 56 8 36
14 6 49 4 60 8 40
16 6 53 4 64 8 44
18 7 52 6 56 10 41
20 7 55 6 59 10 44
22 8 54 6 62 10 47
24 10 50 8 56 12 44
27 12 48 10 53 12 48
30 12 51 10 56 12 51



Specifications
· Material: polyurethane material and steel frame.
· Thickness: 25mm - 60mm.
· Hole type: square, rectangular, round and other types are available.
· Hole size: 2.5mm - 130mm.
· Panel width: max. 1.5m.
· Panel length: max. 3m.
· Hook type: metal or polyurethane.
· Hook direction: transverse or longitudinal.
· Color: red, yellow, blue and any other colors you want.

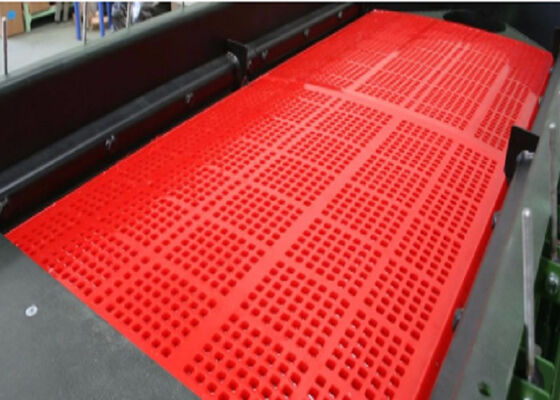

610x610 Polyurethane Mining Vibrating Screen Mesh 0



Polyurethane Characteristics


1. Long service time. Its service life is more than 8 times longer than the ordinary metal products and 3.9 times longer than the rubber products.

2. Large bear capacity. With good resilence, high strength to absorb the impact, high wear resistance, high tensile strength,so its capacity is more than 2.5 times stronger than the rubber and stainless product.

3. High sieving efficiency. On the base of meeting the size distribution, the mesh slot is made into the shape of rectangle. Which gurantees the ratio of qualified fine material and improves the screening effciency.

4. No blocking by the hole.With the resilience nature, the aperture is prevented from blockage.

5. Low niose. Polyurethane sieve machine can reduce noise 5-20 decibels than metal mesh.

6. Low maintenance cost.Easy to installation, simple to replace, long service time ensure the low maintenance cost.

7. Large amount of ore sieving. Polyurethane screen mesh can sieving more than 200000 tons ores.

8. Abrasive resistant. Tear resistant and corrosive resistant.High Quality polyurethane screen mesh for Mining

Application:

Polyurethane Flip Flop Screen Mats offered make use of quality elastomers that guarantees highest performance support as demanded by the customers. Being used for applications involving screening moist or humid materials, these are also suitable for screening of products material like wood chips, building rubble, plastic and others and can also be custom developed as specified by the customers. These are suitable for screening of moist or humid materials like Iron ore at 6mm with 15% moisture, Raw sand at 3mm with 6% moisture, Compost at 10mm with 50% moisture, Slag at 3mm with 10% moisture and others.
