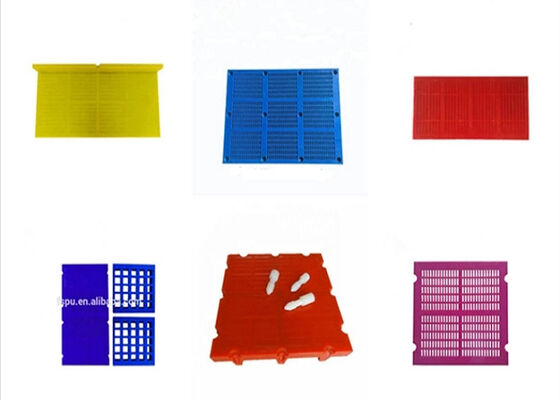

610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh
  • name
  • name

610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh

MOQ: 10 pieces
Price: USD 35-45 per piece
Standard Packaging: air bubble film + wooden box
Delivery Period: 7 - 10 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 10000 pieces per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HUATAO
Model Number
HT-013
Material:
Polyurethane
Size:
610mm*610mm /305mm*305mm
Type:
LINEAR
Feature:
High Screening Efficiency
Usage:
Separation Screening
Function:
Screening\separation\sorting\sieving
Highlight:

polyurethane vibrating screen mesh

,

610x610 vibrating screen mesh

,

dewatering vibrating screen mesh

Product Description

Mould Customize Polyurethane Vibration Dewatering Mine Mesh





Introduction

Polyurethane screen sieve is fabricated by advanced polyurethane materials with embedded metal framework structure, which combines all the characteristics of rubber sieve, but also have superior wear resistance, higher screening accuracy, better tear resistance.



Specifications

Material: polyurethane material and steel frame.

Cut point: 0.5mm
Thickness: 25mm - 60mm.
Hole type: square, rectangular, round and other types are available.
Hole size: 2.5mm - 140mm.
Panel width: customed
Panel length: customed
Hook type: metal or polyurethane.
Hook direction: transverse or longitudinal.
Color: red, yellow, and other colors you want.



Technical data



Origin place Yantai China (Mainland) Brand Name FUSHUN Material Polyurethane
Color Optional Elastic Resilience 34% Abrasion Loss 0.019cm3/1.61km
Elongation 445-557% Tensile Strength 30-53MPa Tear strength 70KN/m
Compressive strength 6-10.5Mpa Hardness Shore60-98A Temperature -40°~ 60°





610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh 0



Features

Polyurethane materials for wear resistance. Self-cleaning apertures reducing pegging and blinding. Wide range apertures suit most applications. Various panel sizes to suit all vibrating screens. Different connection type for easy installation and replacement. High screening performance. Low noise. Long service life and durable



Applications

The modular polyurethane screen panel can fit various vibrating screens and widely used in various applications.
Steel plants.
Mining industry.
Cement plants.
Mineral beneficiation industry.
Power plants.
Coal washing.
Sand, gravel separating and screening.



Shipping:
sample is by air Express, and large order is by sea.

Payment terms:

payment term:

1).100% irrevocable L/C at sight.

2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C

Samples:
samples are available but you need pay for the sample price and freight fee.
the sample fee is returned after you place an order.
The delivert time is about 30days.
