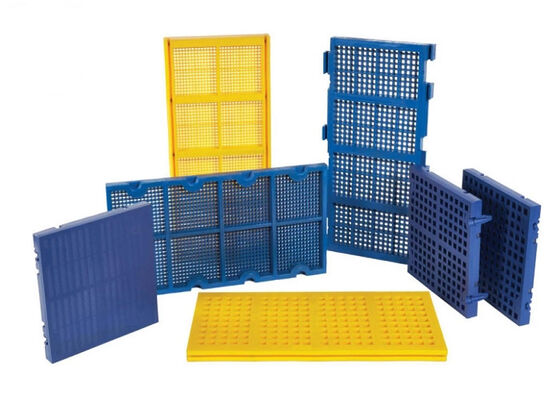

305x305mm Dewatering Pu Screen Mesh For Coal

Polyurethane tension screen panel is an optimal choice for various vibrating machines, compatible with DCV circular vibration sieves, SZD round screens, BY vibrating screens, and similar equipment.

• Material: Polyurethane with steel frame construction
• Thickness range: 25mm - 60mm
• Hole types available: Square, rectangular, round, and custom configurations
• Hole size range: 2.5mm - 130mm
• Maximum panel width: 1.5m
• Maximum panel length: 3m
• Hook options: Metal or polyurethane
• Hook orientation: Transverse or longitudinal
• Color options: Standard colors include red, yellow, blue, with custom colors available

• Steel frame construction for exceptional tensile strength
• Metallic hook system for simplified replacement
• Superior wear resistance for extended service life
• Excellent aging resistance maintains performance over time
• High-efficiency screening with various opening configurations
• Lightweight design for easy installation and maintenance
• Low-noise operation with vibration-absorbing properties

• Compatible with all standard vibrating screen systems
• Effective for separating materials ranging from coarse aggregates to fine particles
• Performs equally well with both dry and wet materials

• High screening efficiency: 2-5 times more effective than standard screens
• Exceptional load capacity: 2.5 times greater than rubber sieve alternatives
• Extended service life: Typically lasts 6 months to over 1 year in operation
• Superior abrasion resistance: Performs well in wet or oily conditions
• Low maintenance: Non-clogging design eliminates frequent cleaning
• Optimized hole design: Prevents particle blockage while maintaining accuracy
• Broad industry compatibility: Ideal for mining, metallurgy, coal, coking, and chemical applications
• Excellent wet performance: Maintains effectiveness in water-based operations
