Mining Sieving Ore 610x610mm Polyurethane Screen Mesh

Products

Self Cleaning Wire Mesh

Mrs. Annie Lu

manager@huataogroup.com

+8618032422676

+8618032422676

Contact Now

Mining Sieving Ore 610x610mm Polyurethane Screen Mesh

MOQ:	10 pieces
Price:	USD 35-45 per piece
Standard Packaging:	air bubble film + wooden box
Delivery Period:	7 - 10 working days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	10000 pieces per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HUATAO

Model Number

HT-013

Material:

Polyurethane

Size:

610mm*610mm /305mm*305mm

Type:

LINEAR

Feature:

High Screening Efficiency

Usage:

Separation Screening

Function:

Screening\separation\sorting\sieving

Highlight:

sieving ore polyurethane screen mesh

610x610mm Polyurethane Screen Mesh

610x610 Polyurethane Screen Mesh

Product Description

Mining Sieving Ore 610x610mm Polyurethane Screen Mesh

Product Attributes

Attribute	Value
Material	Polyurethane
Size	610mm610mm /305mm305mm
Type	LINEAR
Feature	High Screening Efficiency
Usage	Separation Screening
Function	Screeningseparationsortingsieving

Product Description

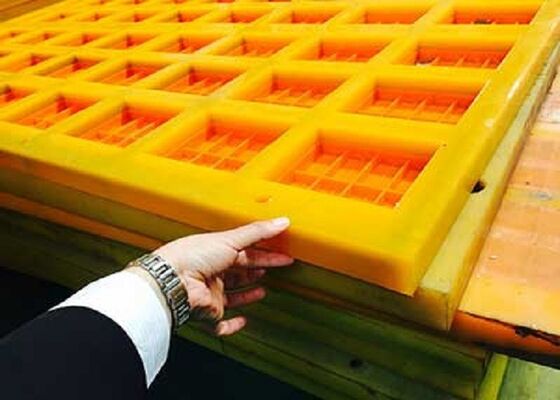

Mining Polyurethane Screen Mesh for Sieving Ore and Shale Shaker Sieve

Polyurethane Trommel Screen for dewatering screens. Polyurethane fine screen mesh is made of polyurethane sheet, offering abrasion resistance and significantly longer service life than woven vibrating screen mesh. The anti-blinding property enables screening of materials previously considered difficult or impossible to screen.

With extremely fine openings as small as 0.1mm, our polyurethane fine screen mesh is suitable for a wide variety of wet and dry applications. It features low noise operation and requires minimal maintenance while providing higher wear resistance and acid/alkali resistance compared to woven vibrating screen mesh.

Convenient hooks on both sides make installation onto vibrating screens quick and easy.

Specifications

Material: polyurethane sheet
Life: 6 month - 12 month
Color: orange, red and any other colors
Screen width: 0.6m, 0.7m, 0.8m, 1m, 1.2m, 1.4m, 1.6m
Screen length: 0.7m, 0.8m, 1m, 1.045m, 1.2m, 1.245m, 1.5m, 2m, 2.32m, 2.5m, 3m, 3.32m, 3.5m and more
Hook: polyurethane or metal

Standard Aperture Sizes

Size of aperture W1	Size of aperture W2	Overall height BH	Height of the screening area SF	Width of the screen	Length of the screen	Effective open screening area %
0.6	11	30	8		1000	8.4
1	10	30	10	300		11
1	15	30	10		1000	9.2
1.5	11.5	30	9	300		16.7
2	11.5	30	10	300		20.6
2	16	30	10	300		21.5
2.2	11.5	30	10	300	1000	21.7
2.5	16	30	10	300	1000	24.6
3	16	30	10	300	1000	18.7
4	20	30	10	300	1000	23

Key Features

Abrasion and wear resistance
Acid and alkali resistance
Accurate separation
Inlaid wedge-shape structure to strengthen the tensile strength
Lightweight and easy to install and replace
Low operating and maintenance cost
Low noise
