Polyurethane Screen Panel

MOQ:	5PCS
Price:	USD 150 - 300 / PC
Standard Packaging:	WOODEN BOX, PALLET
Delivery Period:	AROUND 15DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	20PCS/DAY

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Model Number

HT022

MATERIAL:

PU (POLYURETHANE)

SIZE:

ANY SIZE

THICKNESS:

18-50MM, OTHERS CAN BE DESIGNED

OPENING SHAPE:

ROUND, SQUARE, RECTANGLE

OPENING SIZE:

3mm - 100mm, Otehrs Can Be Designed

FIXED MODE:

NIPPLE & PIN , HOOKS

Highlight:

polyurethane screen mesh

vibrating screen wire mesh

Product Description

Polyurethane Screen Panel , Tensioned Polyurethane Screen, PU screen panel, poly screening media , Polyurethane sieve board , Polyurethane sieve plate/media

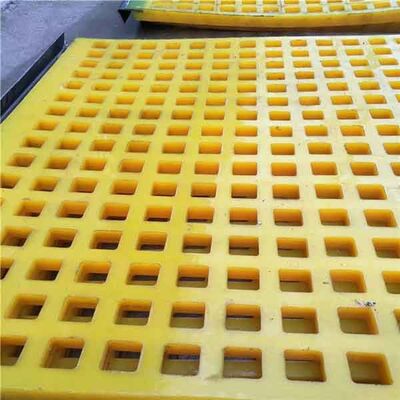

Modular polyurethane screen mesh is manufactured from specially formulated polyurethane and high tensile embedded steel frame. Combined with wear resistance urethane and high tensile strength steel frame, modular polyurethane screen mesh possesses excellent performance in separating and screening industry.

Polyurethane Screen Panel 0

Similar as polyurethane dewatering screen, modular polyurethane screen also has various connection types, including the bolts connection type, mosaic connection type, press bar connection type and hook connection type. Various connection types can fit different machines and different applications. It is the most versatile and cost effective modular system.

Polyurethane Screen Panel 1

Specifications:
Material: polyurethane material and embedded steel frame.
Thickness: 30mm - 60mm.
Aperture type: square, rectangular and round.
Aperture size: 5mm - 50mm.

Connection type: mosaic connection, bolts connection, press bar connection and hook connection.

Features:
Polyurethane materials for wear resistance.
Self-cleaning apertures reducing pegging and blinding.
Wide range apertures suit most applications.
Various panel sizes to suit all vibrating screens.
Different connection type for easy installation and replacement.
High screening performance.
Low noise.
Long service life and durable.

Polyurethane Screen Panel 2 Polyurethane Screen Panel 3
Applications:
The modular polyurethane screen mesh can fit various vibrating screens and widely used in various applications.
Steel plants.
Mining industry.
Cement plants.
Mineral beneficiation industry.
Power plants.
Coal washing.
Sand, gravel separating and screening.

Polyurethane Screen Panel 4

Polyurethane Screen Panel 5
