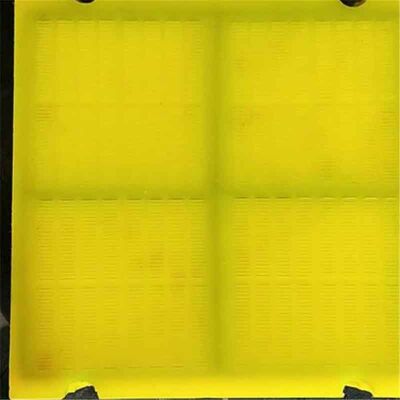

PU Panel For Screening Sand
  • name
  • name
  • name
  • name
  • name
  • name

PU Panel For Screening Sand

MOQ: 30pcs
Price: 15-25USD
Standard Packaging: WOODEN BOX , PALLET
Delivery Period: AROUND 15DAYS
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 200PCS/DAY
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HT
Model Number
HT017
MATERIAL:
PU
OPENING:
0.1-10MM
SIZE:
305*305MM, AND ANY SIZE CAN BE DESIGNED
THICKNESS:
28MM - 50MM
COLOR:
YELLOW , RED Etc
Highlight:

vibrating screen wire mesh

,

pu screen mesh

Product Description

PU Panel For Screening Sand is a type of screens made of steel frame and polyurethane surface. This structure ensure the high tensile strength and much better wear resistance than the woven vibrating screen mesh and perforated vibrating screen nesh.
Polyurethane dewatering screen panel is mainly used for dewatering of sand and gravel
Polyurethane dewatering screen panel is also called polyurethane slot screen because of the narrow slot openings. The narrow slot opening is as fine as 0.1mm, which makes the screen have high efficiency and accurate dewatering performance.

The polyurethane dewatering screen panel is widely used to assist in dewatering of materials. Additional, it can also provide a ramp which helps to maximize screen washing capabilities.



PU Panel For Screening Sand 0



Specifications:
Material: steel frame and polyurethane surface.
Thickness: 30mm, 45mm, 50mm.
Opening size: Width: 0.1mm - 2.5mm , Length: 4mm - 16mm.
Screen width: 305mm, 500mm and 515mm.
Screen length: 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm.
Connection type: Bolts, Rose nail, Trim strip , Rail support.

PU Panel For Screening Sand 1



PU Panel For Screening Sand 2



Features:
Wear and abrasion resistance.
High efficiency.
High tensile strength. Steel frame added to strengthen the tensile strength.
Lightweight and easy to install.
Various connection types to fit different machines.
Non-blinding.
Low noise.
Long service life.



Application:
Polyurethane dewatering screen panel can provide a ramp which helps to maximize screen washing capabilities and mainly used for dewatering and dehydration for various materials. Such as below:
Tailing.
Coal.
Gravel.
Sand.

Package : wood box and pallet

PU Panel For Screening Sand 3PU Panel For Screening Sand 4

Tags:

polyurethane screen panels,

pu screen mesh,

pu screen panel
