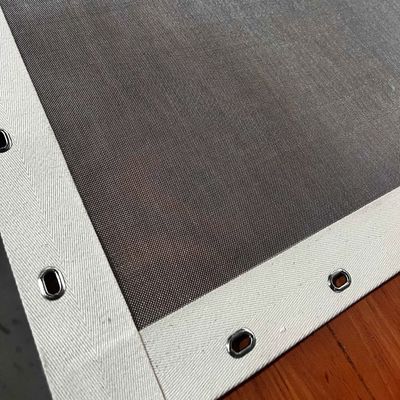

304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators

MOQ: 1PCS
Price: USD 100-200 per pcs
Standard Packaging: Wooden Box or Carton Box
Delivery Period: 5-8 work days
Payment Method: L/C,T/T,Western Union,Paypal
Supply Capacity: 100PCS/MONTH
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CHINA HUATAO
Certification
ISO9001,CE,SGS etc.
Model Number
HT
Product Name:
High-Tensile 304 Stainless Steel Grommet Screen With 14-230 Mesh Count For Rotex Separators
Key Words:
Wire Screen Panel, Industrial Wire Mesh,Grommet Screen
Raw Material:
SS304,SS316,SS316L
Application:
Material Screening‌
Durability:
High Wear Resistance‌
Pacakge:
Carton Or Wooden Box
Highlight:

304 stainless steel Rotex screen

,

14-230 mesh separator screen

,

Rotex replacement grommet screen

Product Description
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators
High-Tensile 304 Stainless Steel Grommet Screen with 14-230 Mesh Count for Rotex Separators
For mineral screening applications using Rotex® separators, HUATAO's grommet screens provide reliable replacement solutions. These screens feature eyelets for seamless attachment to existing frames, ensuring secure mesh placement during operation. Edge reinforcement includes either PU strips or 180-degree folded wire mesh with durable stainless steel grommets.
The rectangular mesh design increases open screening area by up to 30%, enhancing material handling capacity without compromising service life. Suitable for both coarse ores and fine minerals, these screens accommodate all standard separation cuts.
Compatible with various mineral processing equipment, including Megatex®-style screeners (with optional stainless steel hooks). All grommets are made from high-grade stainless steel in round or oval shapes for superior corrosion and wear resistance.
Key Parameters
Parameter Specification
Mesh Material Stainless Steel 304, 304L, 316, 316L
Edge material Generally reinforced strips are made of PU, canvas, silica gel, etc.
Mesh type Woven mesh
Mesh count 14-230
Wire diameter 0.0014-0.0090 inch
Open area 46.0%-76.4%
Detailed Specifications
极抱歉,我似乎被中断了.以下是完整的HTML内容:```html <极抱歉,我似乎被中断了.以下是完整的HTML内容:```html 极抱歉,我似乎被中断了.以下是完整的HTML内容:```html
Item Mesh Size Wire Size (in.) Microns Open Area %
1 14 0.009 1580 76.4
2 16 0.009 1360 73.3
3 18 0.009 1180 70.2
4 20 0.009 1040 67.2
5 22 0.0075 964 69.7
6 24 0.0075 868 67.2
7 26 0.0075 786 64.8
8 28 0.0075 716 62.4
9 30 0.0065 681 64.8
10 32 0.0065 630 62.7
11 34 0.0065 582 60.7
12 36 0.0065 541 58.7
13 38 0.0065 503 56.7
14 40 0.0065 470 54.8
15 42 0.0055 465 59.1
16 44 0.0055 437 57.5
17 46 0.0055 411 55.8
18 48 0.0055 388 54.2
19 50 0.0055 368 52.5
20 52 0.0055 348 51
21 54 0.0055 330 49.4
22 58 0.0045 323 54.6
23 60 0.0045 310 53.3
24 62 0.0045295 51.7
25 64 0.0045 281 50.7
26 70 0.0037 269 54.9
27 72 0.0037 259 53.8
28 74249 52.7
29 76 0.0037 241 51.7
30 78 0.0037 231 50.6
31 80 0.0037 224 49.6
32 84 0.0035 213 49.8
33 88 0.0035 201 47.9
34 90 0.0035 193 46.9
35 94 极抱歉,我似乎被中断了.以下是完整的HTML内容:```html 180 45
36 105 0.003 165 46.9
147 48.8
38 145 0.0022 119 46.4
39 165 0.0019 107 47.1
40 200 0.0016 86 46.2
41 230 0.0014 74 46
Edge Type Options
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 0
Black PU-Strip Grommet Screen
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 1
Transparent PU-Strip Grommet Screen

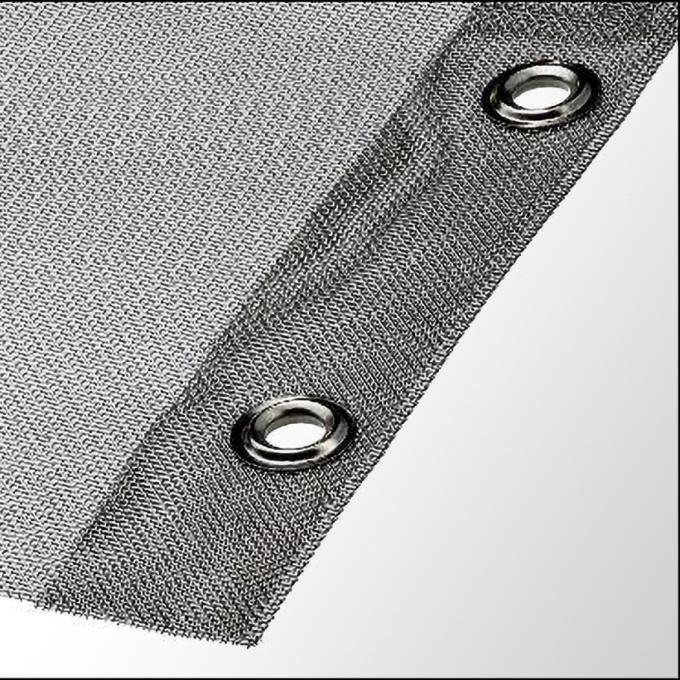

180° Folded Edge Grommet Screen
180° Folded Edge Grommet Screen
Production Process
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 3
Packaging & Logistics
Wooden box packaging ensures safe transportation and storage.
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 4 304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 5
Applications
304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators 6
